86130 UV Energy Meter
Designed for High-Pressure Mercury Lamps
Spectral response range: 315nm–400nm, peak wavelength at 365nm
Simultaneously records real-time power, peak power, total energy, and curing duration
Includes PC software for detailed analysis
The 86130 UV Energy Meter is a professional tool for measuring both ultraviolet (UV) energy and intensity. It's ideal for evaluating UV output from light sources such as high-pressure mercury and halogen lamps. Common applications include UV curing systems, printing presses, exposure machines, UV dryers, and more.
A Chinese-manufactured UV meter certified by the Chinese National Institute of Metrology
Dual-function integrator for simultaneous measurement of UV energy and UV intensity
Real-time display of power, maximum intensity, total energy, and curing time
PC-compatible meter with software for data reading, graph viewing, and report printing
Parameters
| Parameter | 86130 UV Energy Meter |
|---|---|
| Spectral range | 315nm-400nm, λp = 365nm |
| Irradiance measuring range | 0-2000mW/cm² |
| Irradiance resolution | 0.1mW/cm² |
| Energy measuring range | 0-999999mJ/cm² |
| Energy measuring accuracy | ±10%，±5% (typical) |
| Sampling speed | 2000 times/second |
| Irradiance data storage interval | 32 times/second |
| Recording period | 32 minutes |
| Power supply | 4 AAA alkaline dry batteries |
| Display | 240*160 Dot matrix LCD |
| Test Hole Diameter | ￠8mm |

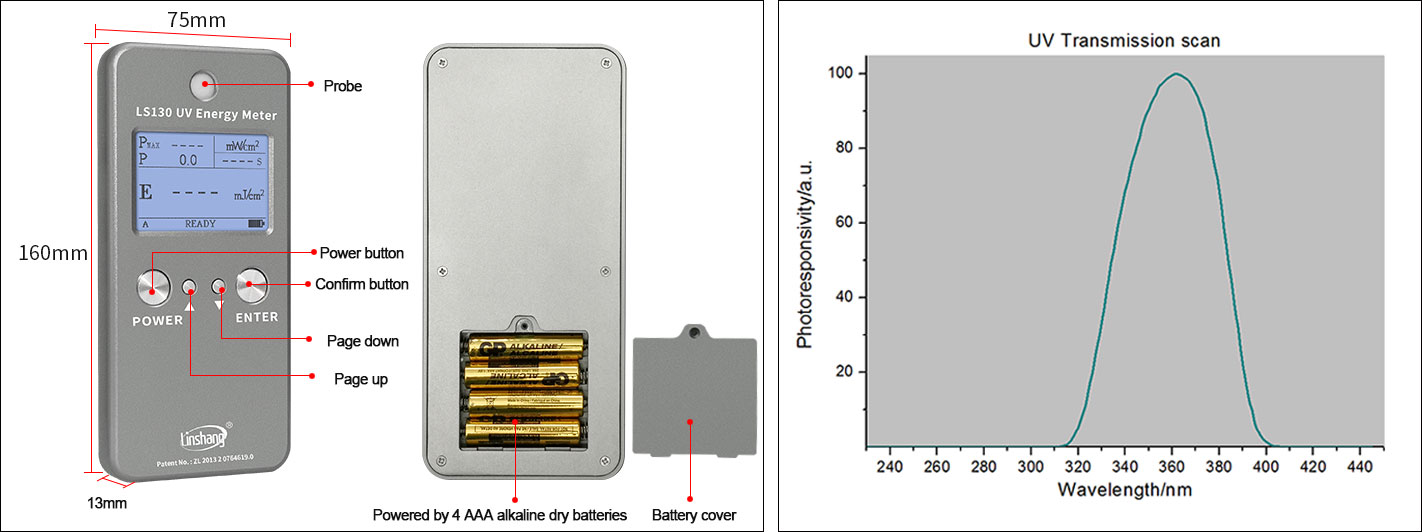

| Dimension | 160mm× 75mm×13mm(L*W*H) |
| Weight | 303 g |
Feature
Simultaneous Measurement of UV Power and Energy
The LS130 UV Energy Meter offers real-time tracking of UV power and energy. It displays live power readings, peak values, total accumulated energy, and measurement time—providing precise control over curing duration.

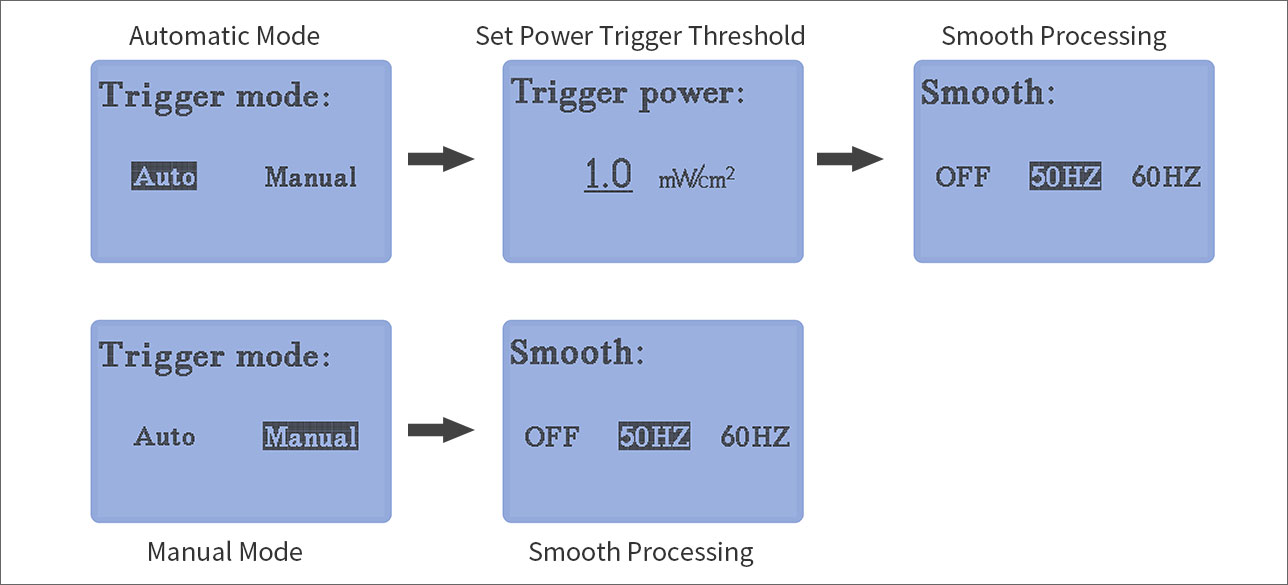

Two Measurement Modes
Choose between two modes:
Manual Mode: Manually start and stop measurements.
Automatic Mode: Automatically begins or ends measurement when UV intensity crosses a user-defined threshold.
Durable High-Temperature Design

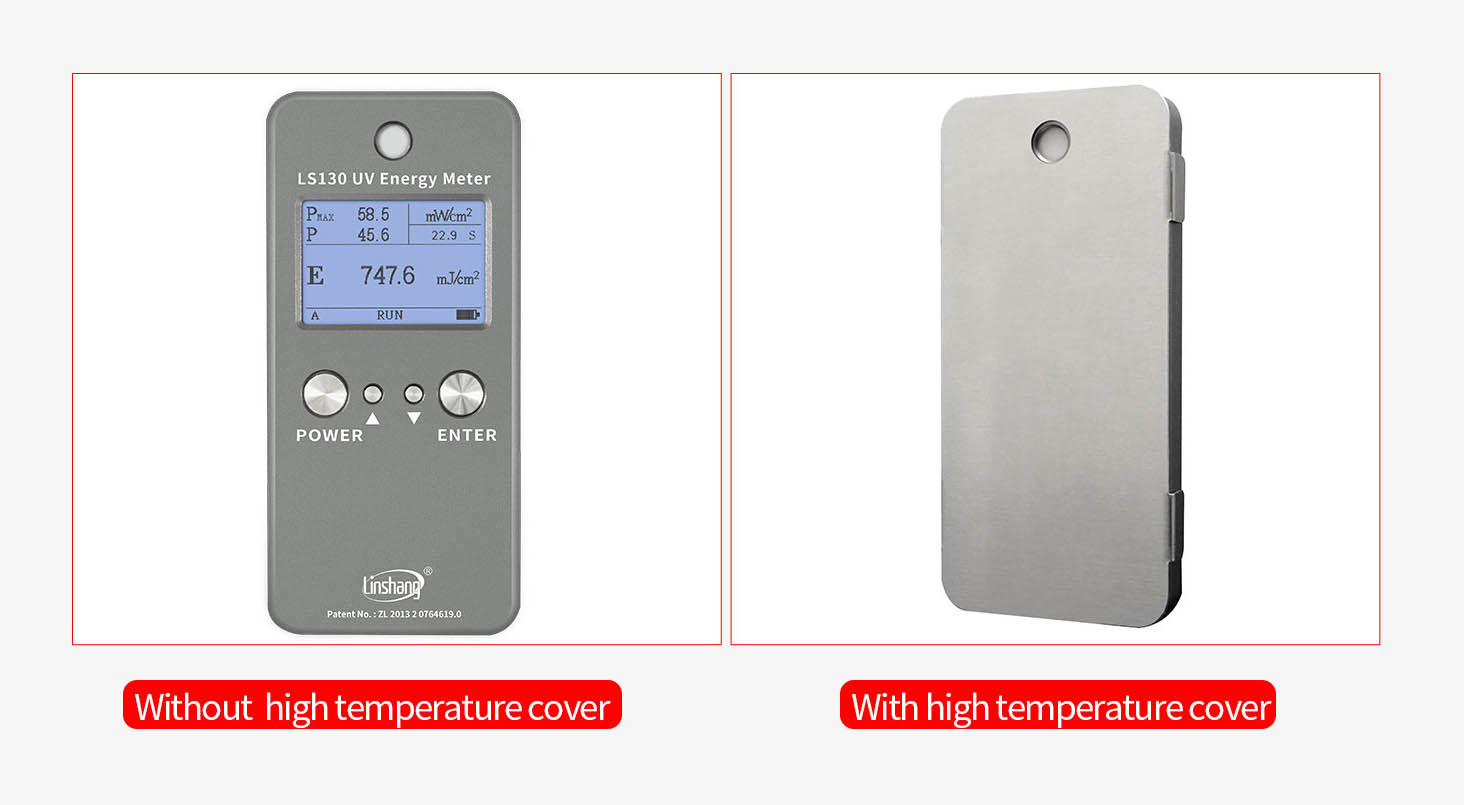

Housed in a metal shell, the device is built to operate continuously in environments up to 100°C. An optional high-temperature protective cover is also available (not included by default).
Free PC Software Included
Connect the LS130 via USB to a computer to access the provided software. View detailed test data and generate printable reports for documentation or analysis.
Large LCD with Power Curve Display
The built-in LCD screen presents a real-time UV power curve, allowing you to assess the distribution of light intensity. The detector is positioned on the same side as the screen, enabling data to be read during the test.
User-Friendly Design
The upward-facing screen design allows for easy data viewing during operation.
High-speed data sampling at 2048 times per second ensures measurement accuracy
Large internal memory accurately logs curing time and stores data
Automatically recalls the last test result at startup to prevent data loss due to power interruption

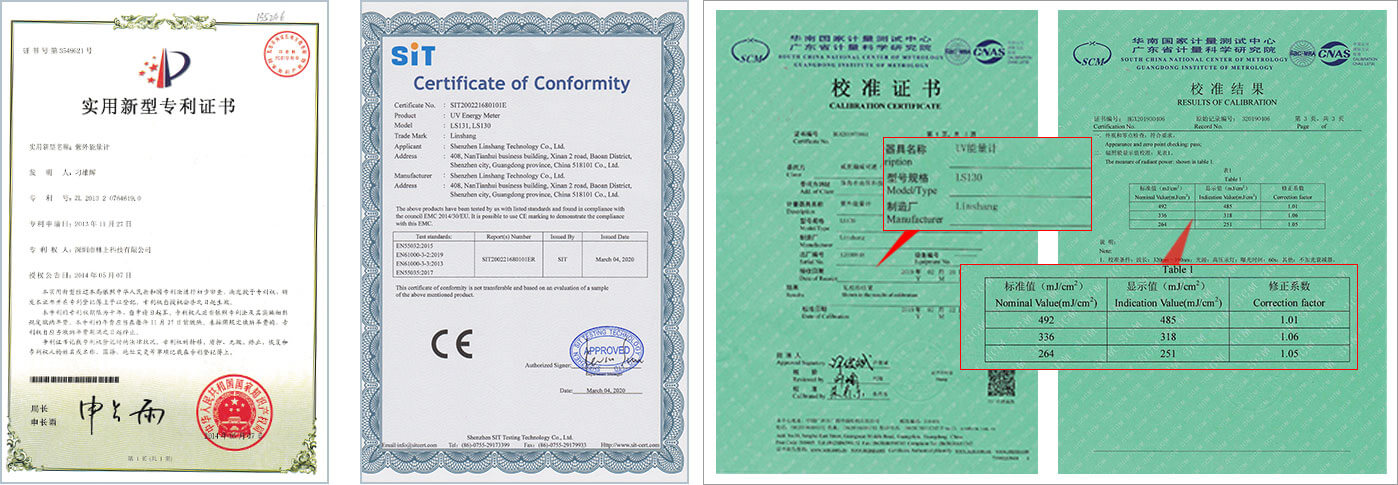

Qualifications and Standards
LS130 UV energy meter conforms to the following standard:
JJG 879-2015 Verification Regulation of Ultraviolet Radiometer
Operation and Software

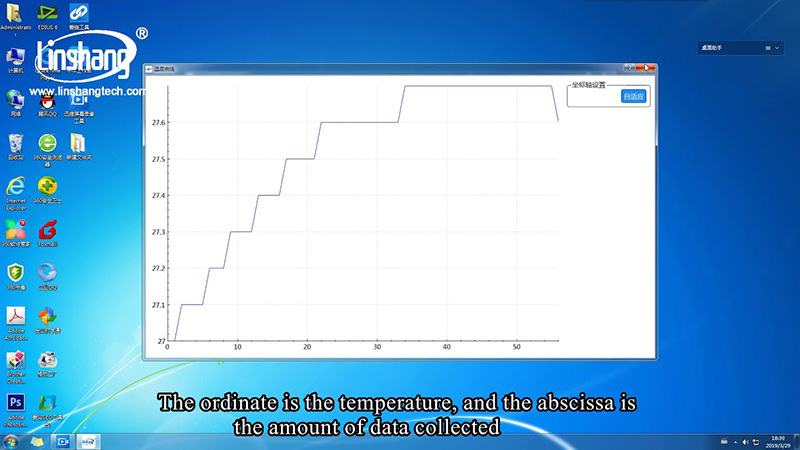

LS130 PC software operation
LS130 Operation video
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | LS130 UV Energy Meter | 1 | pcs |
| 2 | USB cable | 1 | pcs |
| 3 | Software USB flash disk | 1 | pcs |
| 4 | Cross screw-driver | 1 | pcs |
| 5 | User Manual | 1 | pcs |
| 6 | Certificate/Warranty card | 1 | pcs |

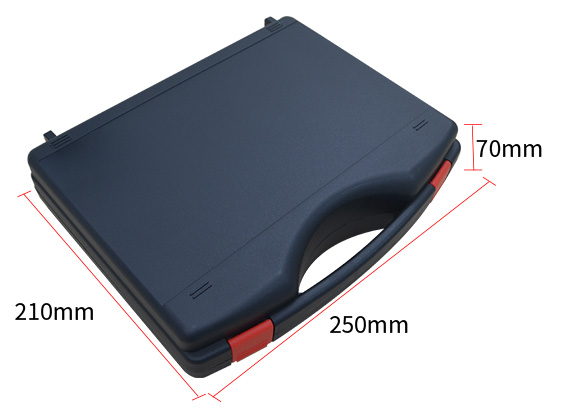

| 7 | Plastic box dimension 25*21*7cm (L*W*H) | 1 | pcs |
FAQ
-
1. The difference between LS130 and LS131 UV energy meters
LS130 UV energy meter is mainly used to detect 365nm UV high pressure mercury lamp, while LS131 UV energy meter is mainly used to detect 365nm, 385nm, 395nm and 405nm UV LED light sources.
-
2. The difference between LS120 and LS130 UV energy meters
Both LS120 and LS130 are UV energy meters used to detect 365nm high pressure mercury lamps. They can measure the power value (irradiation intensity) of the UV lamp, the energy value and display the power curve; in addition, LS120 can also measure the temperature in the curing machine and display temperature curve, but LS130 does not have this function.
-
3. Whether a traceable calibration certificate is included?
LS120 and LS130 are professional UV energy meters used to detect 365nm high-pressure mercury lamps, which can be ensured to pass the inspection of the Metrology Institute and obtain a calibration certificate (approved by CNAS and ilac-MRA). The cost of the calibration certificate is about US$200 ; LS128 and LS131 are UV energy meters that are professionally used to detect UV LED light sources. There is no unified inspection standard for LED light sources, each light source and UV energy meter manufacturer has their own calibration standards. We can provide the factory calibration reports for these two UV LED energy meters, but no calibration certificates can be provided.
LS130 and LS131 have certified to CE.
-
4. How to calibrate UV energy meter, how often do I need to calibrate and how much does it cost?
To calibrate the UV energy meter, please send the instrument back to the manufacturer. Generally, it is recommended to calibrate it once a year. If the storage environment is good and the frequency of use is not high, the calibration period can also be extended according to user needs. The first calibration is free, and the cost of each subsequent calibration is US $32.
