86215 Ultrasonic Thickness Gauge
Measurement from 1–320 mm with 0.01 mm display resolution
Nondestructive measurement of metal pipes, steel plates and plastics
Compatible with 4 interchangeable probes for broader applications
High accuracy, compliant with metrology verification requirements
999 data groups for secure data storage
86215 ultrasonic thickness gauge adopts the pulse echo measurement principle to perform nondestructive testing on steel, aluminum, copper, plastics, ceramics, glass, and other sound-conductive materials. With a display resolution up to 0.01 mm, the 86215 meets the accuracy requirements verified by the national metrology institute. Four probes are available—standard, micro-diameter, coarse-crystal, and high-temperature—which can be freely selected based on application needs.
Application
Suitable for measuring the thickness of metal plates, steel parts, pipes, ceramics, plastics, glass and any other material that conducts ultrasonic waves.
Note: For accurate results, the rear surface of the test piece must be parallel or coaxial with the test surface. For curved samples, ensure the split surface of the probe is perpendicular to the curvature axis.

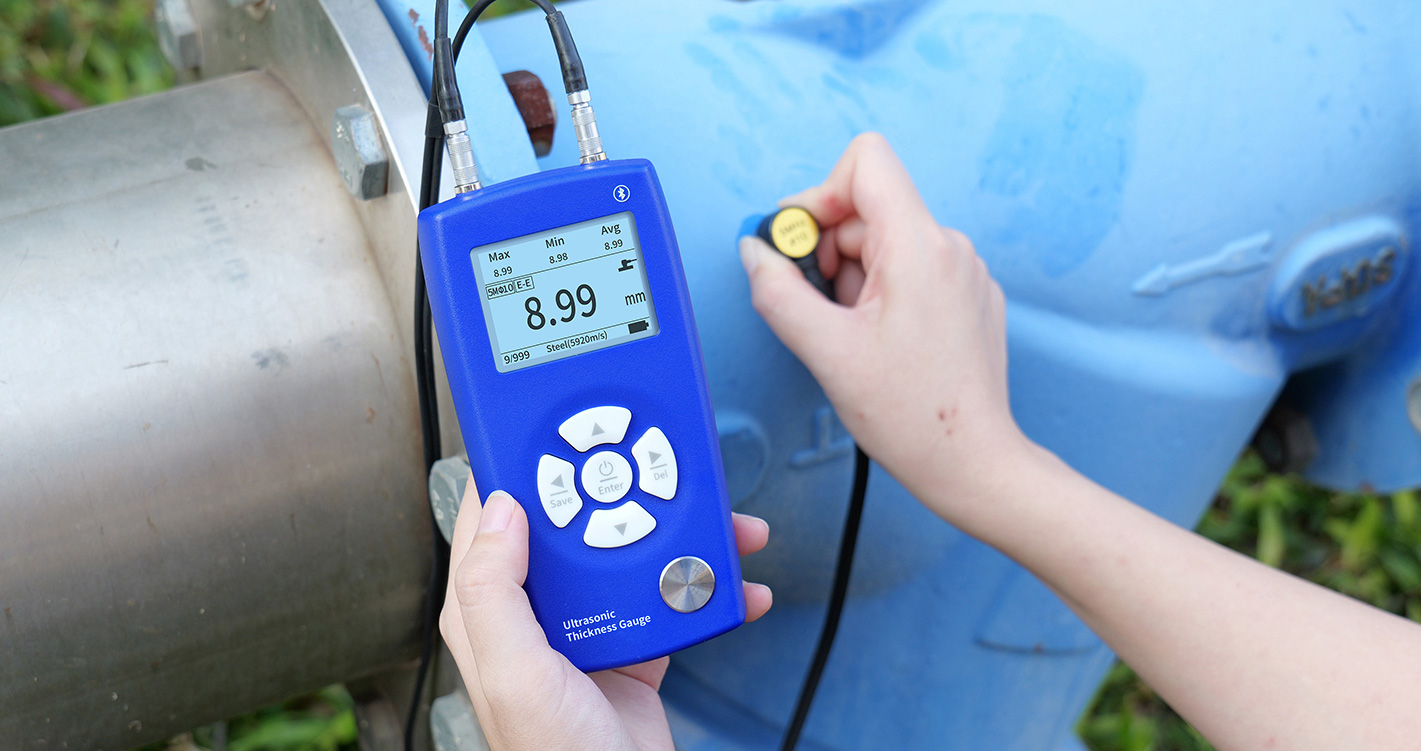

86215 tests stainless steel pipe

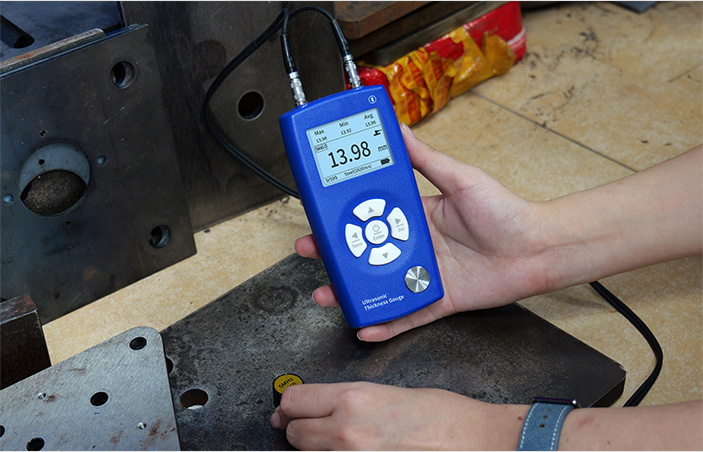

86215 tests steel plate

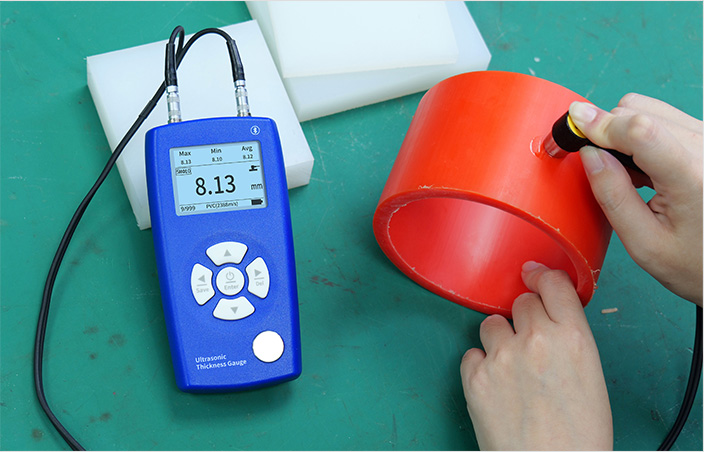

86215 tests plastic

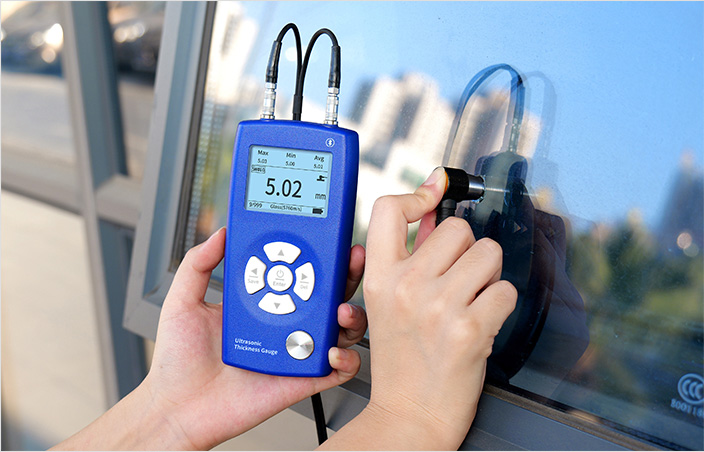

86215 tests glass
Parameters
1. Probe Parameters
| Probe | Standard Probe | Micro-diameter Probe | Coarse Crystal Probe | High Temperature Probe |
|---|---|---|---|---|
| Probe Model | 5MHZφ10 | 7MHZ PT-06 | 2MHZ ZT-12 | 5MHZ GT-12 |
| Application | Measure conventional workpieces | Measure curved surfaces and small workpieces |
Cast iron and some materials with large crystal particles |
Measure high temperature workpieces |
| Minimum measuring area | φ10mm | φ6mm | φ12mm | φ12mm |
| Probe size | φ18*26mm | φ15*25mm | φ18*28mm | φ43*48mm |
| Measuring Range (45#steel) |
1-320mm | 0.75-80mm | 3-200mm | 3-200mm |
| Accuracy (H is the standard value) |
H<10mm: ±0.05 H>=10mm: ±0.5%H |
H<10mm: ±0.05 H>=10mm: ±0.5%H |
H<10mm: ±0.1 H>=10mm: ±1%H |
H<10mm: ±0.05 H>=10mm: ±0.5%H |
| Exposure temperature | -10~60℃ | -10~60℃ | -10~60℃ | -10~500℃ |
| Pipe measurement lower limit (45# steel) |
φ20*3mm | φ20*2mm | φ30*4mm | φ30*4mm |
2. Main Unit Parameters
| Parameters | Values |
|---|---|
| Resolution | 1-100mm：0.01mm 100-320mm：0.1mm |
| Sound Velocity Range | 1000~19999 m/s |
| Display | 240 * 160 dot matrix LCD |
| Units | mm/inch |
| Power | 2pcs of 1.5V AA alkaline battery |
| Host Size | 142*72*28 mm |
| Weight | About 230g |
| Operation Temperature Range | -10~60℃，0~85%RH（No condensation） |
| Storage Temperature Range | -10~60℃，0~85%RH（No condensation） |
86215 appearance dimensions
86215 battery
Features
Wide Measurement Range
Measures materials from 1 to 320 mm in thickness, meeting a wide range of application needs.

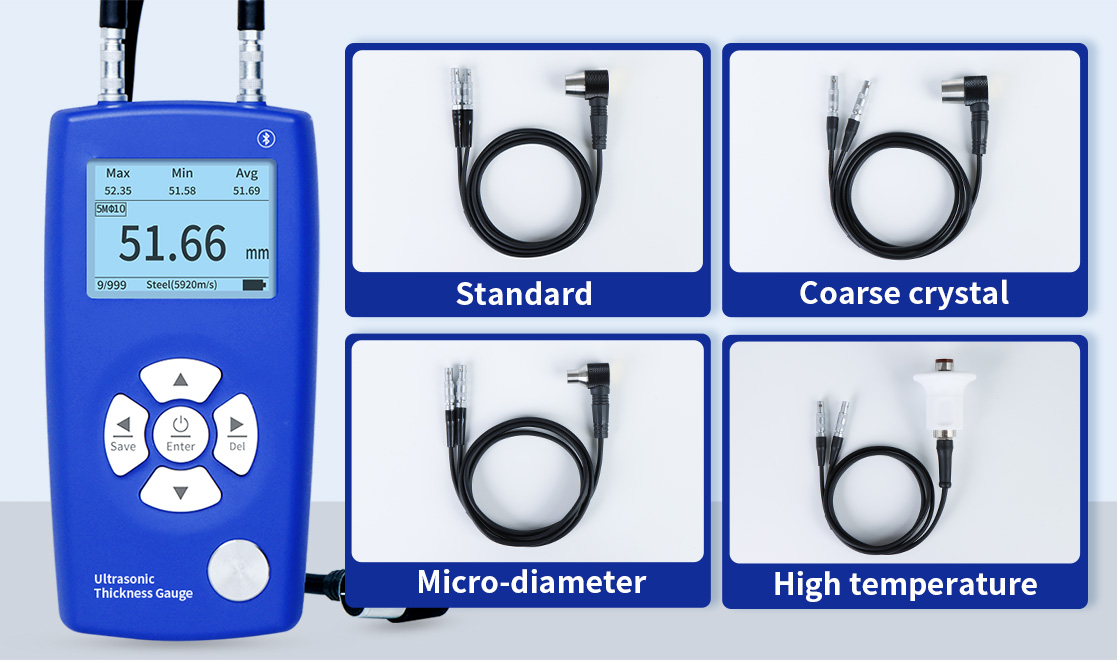

Interchangeable probes for convenient measurement
Supports standard, micro-diameter, coarse crystal, and high temperature probes, with automatic probe identification.
High accuracy for metrology verification
Accuracy up to ±0.05 mm, fully capable of passing national metrology testing.
Large data storage capacity
Stores up to 999 measurement groups, reducing the risk of data loss.

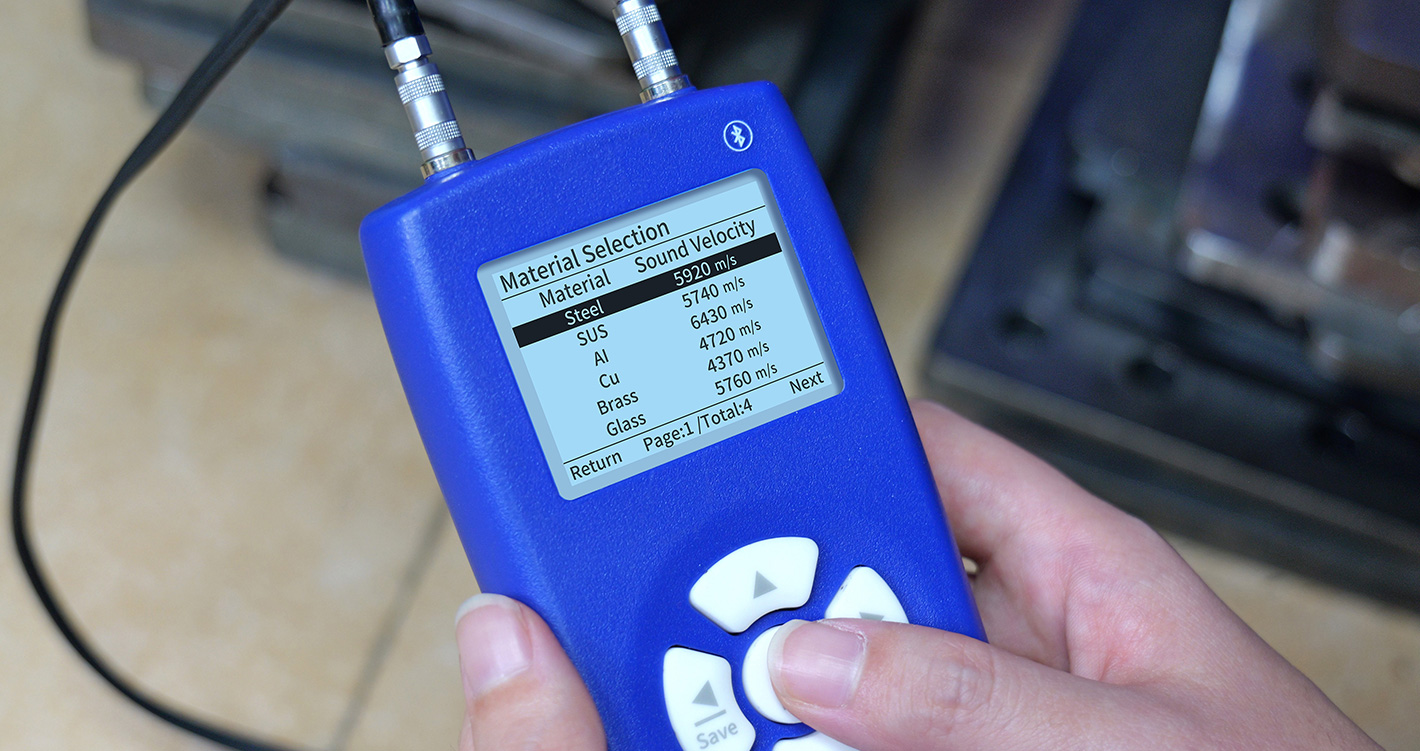

19 built-in sound velocities
Includes preset velocities for 19 common materials for quick setup and faster operation.
18 Customizable sound velocity settings
Save up to 18 additional sound velocities (9 Set by thickness + 9 Manual input), ideal for special materials.
86215 known thickness setting sound velocity

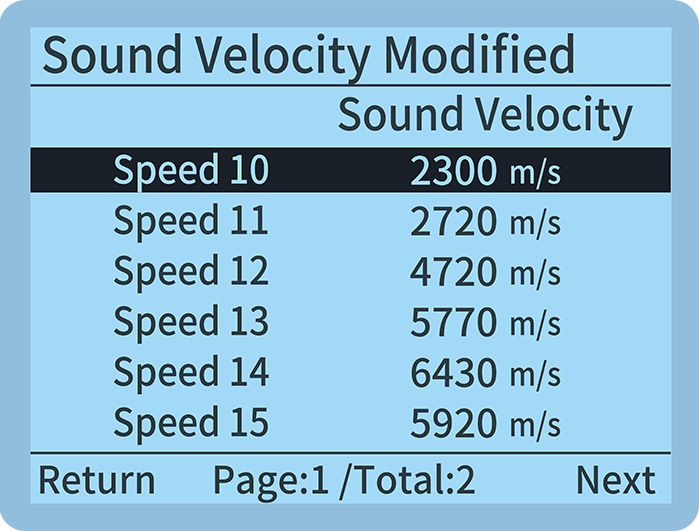

86215 manual sound velocity setting
With E-E measurement mode
The standard probe features a E-E measurement mode, which supports measuring base material thickness through coatings without paint removal.
Professional timing chip for precise measurement
Built-in a professional timing chip, offering excellent stability and measurement accuracy with 0.01 mm resolution
High-sensitivity dual crystal probe
Dual-crystal design improves signal response, reduces noise, and features a durable stainless-steel housing.
Automatic gain adjustment
Automatically adapts signal amplification based on material type and thickness to ensure accuracy across the full range.
Optional wrist strap
A wrist strap is available as an optional accessory, facilitating one-handed operation.

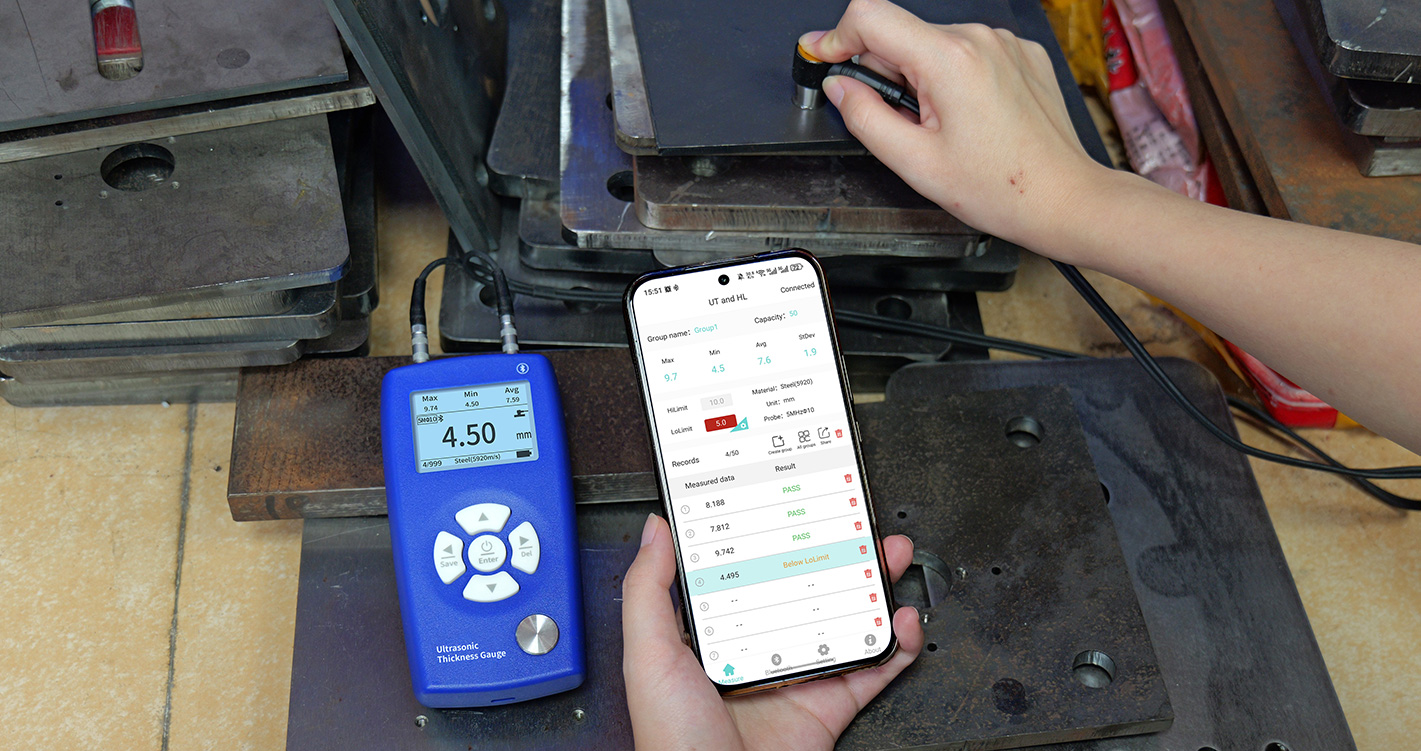

Mobile APP support
Connects to a mobile app via Bluetooth and supports storage of 50 data groups, with up to 999 readings per group, making it easy to save and share measurements anytime.

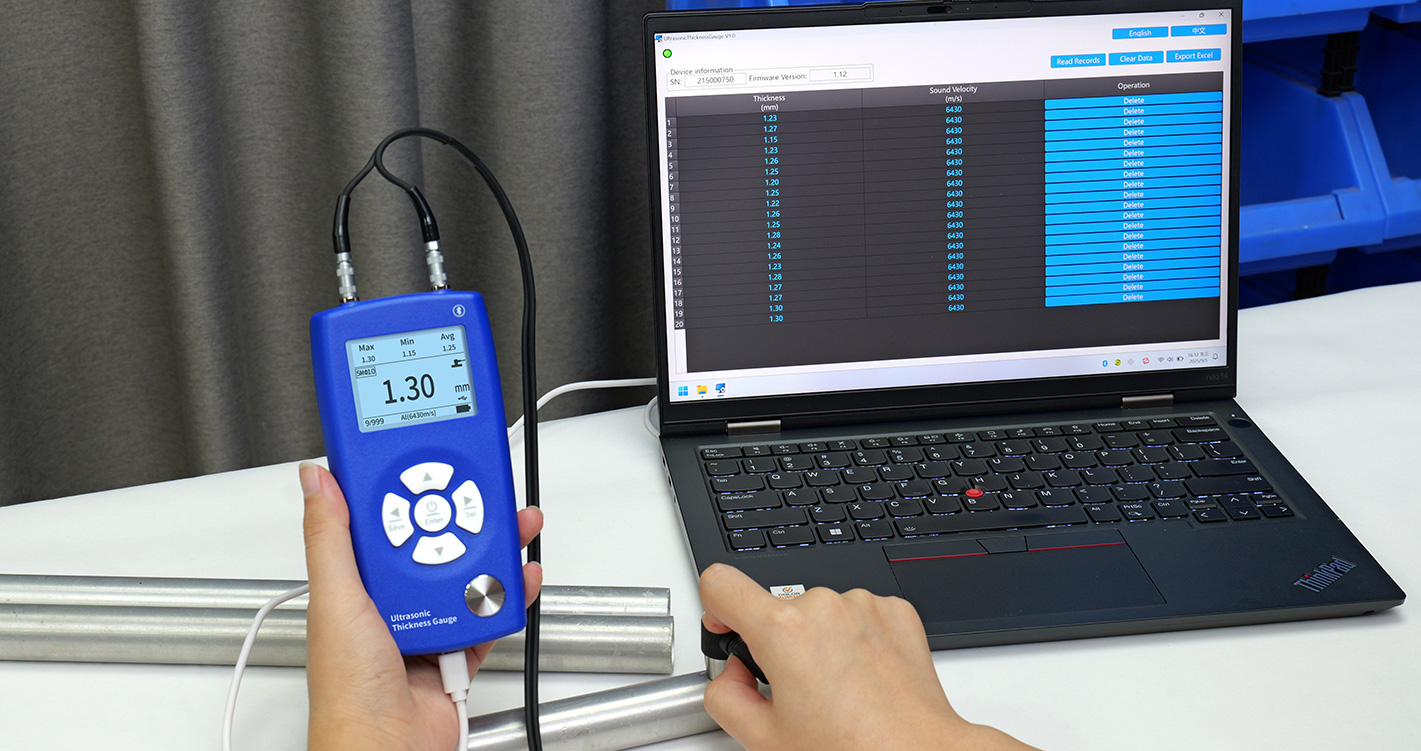

PC software connectivity
When connected to PC software, test data can be exported for storage and sharing.
Pass/NG thickness evaluation
In QC mode, upper and lower limits can be freely set, and the instrument automatically determines whether measurements are within tolerance.

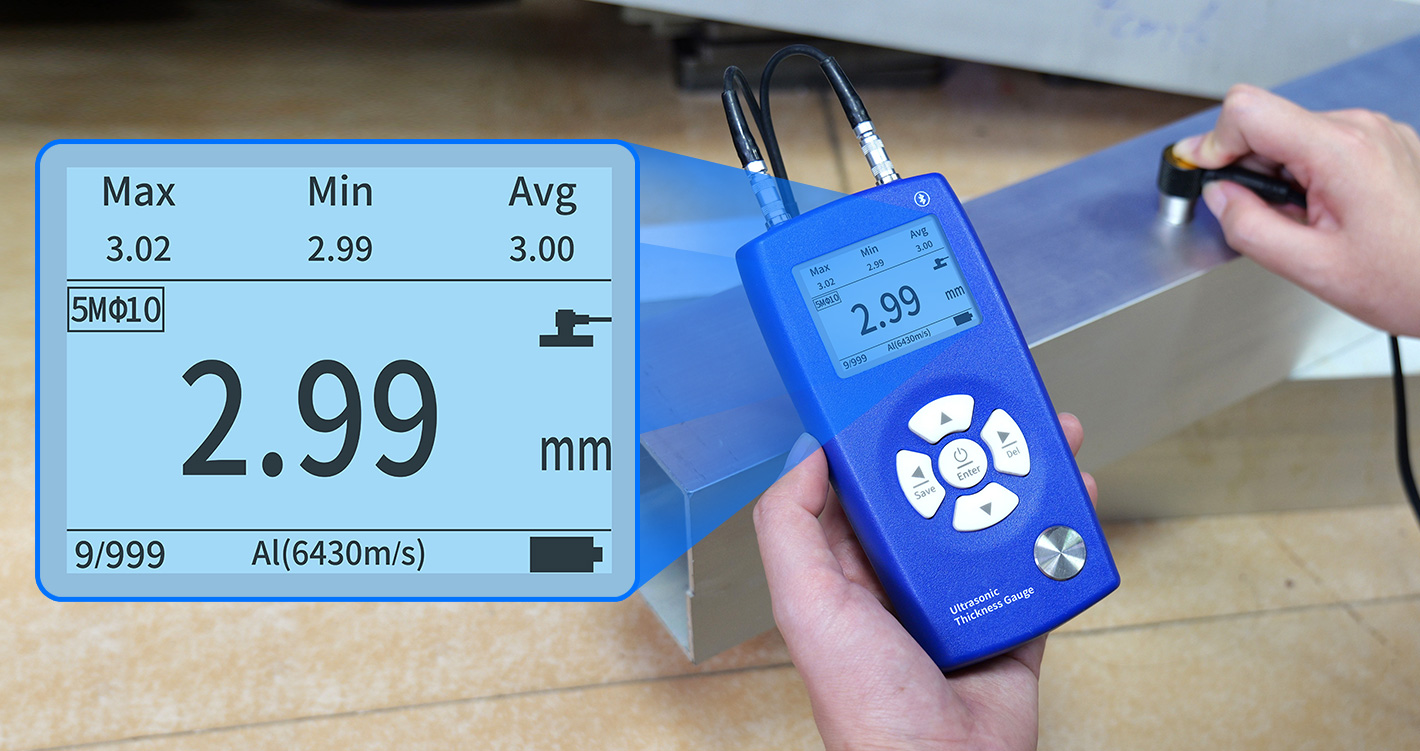

Smart data statistics
Automatically calculates maximum, minimum, and average values for material uniformity assessment.
Low power consumption enables continuous use
Protective silicone case included, drop & stain resistant
Supports Chinese and English, with two units of measurement
LCD with backlight to ensures clear readings
Software Download
The 86215 Ultrasonic Thickness Gauge is equipped with an APP that supports Android OS version 7.0 and higher. It can be installed through the following ways:
1)Scan the QR code on the instrument with your mobile browser, follow the instructions to download and install.
2)Search for "UT and HL" (not case sensitive) in the Google Play to install the application.

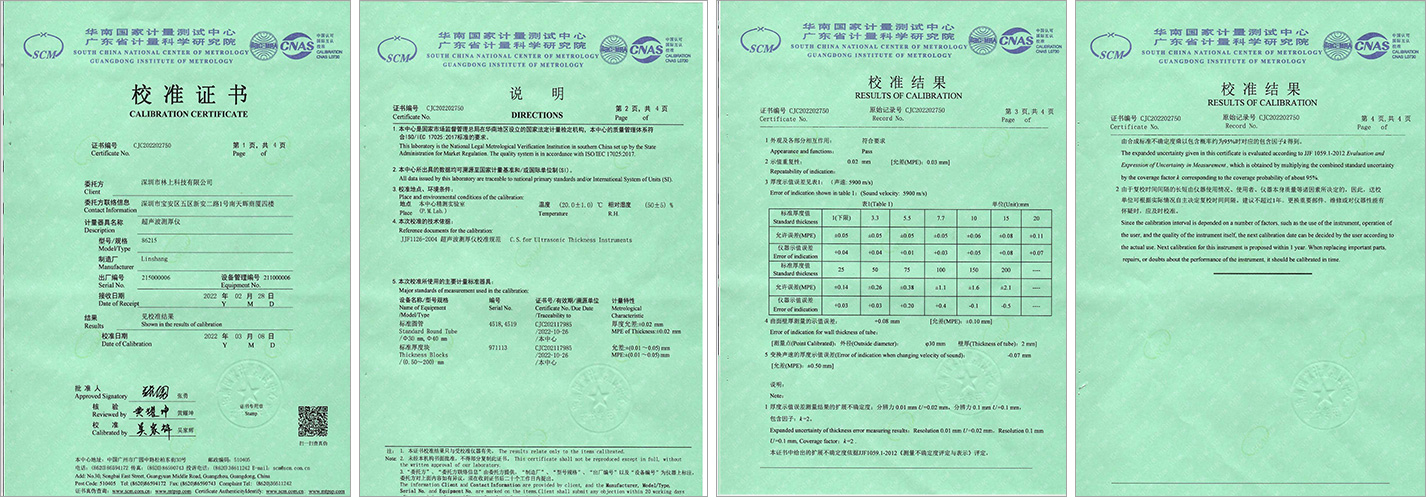

Qualifications and Standards
86215 conforms to the following standards:
JJF 1126-2004 Calibration Specification for Ultrasonic Thickness Instruments
