86226 High Precision Coating Thickness Gauge
Ideal for Measuring Coating Thickness on Flat Surfaces
Gravity-based measurement ensures stable positioning
Dual-screen display for easy readability
1-5 point calibration for complex applications
This high-precision coating thickness gauge is designed to measure non-magnetic coatings—such as paint, varnish, enamel, chrome, and galvanizing—on ferromagnetic metal substrates like steel or iron. It also accurately measures non-conductive coatings—including paint, anodized layers, and ceramics—on non-magnetic metals such as copper, aluminum, die-cast zinc, and brass. The gauge automatically detects the substrate type and switches modes accordingly, making it ideal for use in manufacturing, metal processing, chemical industries, quality inspection, and more.

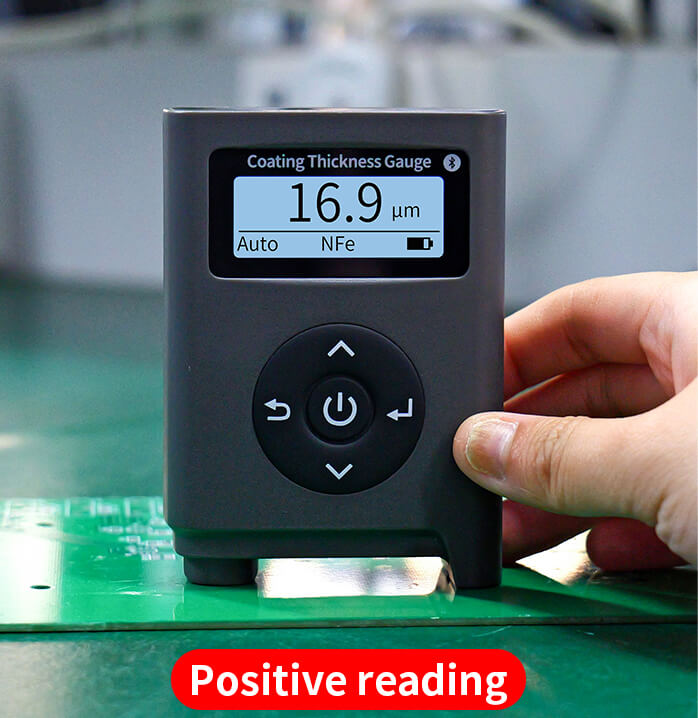

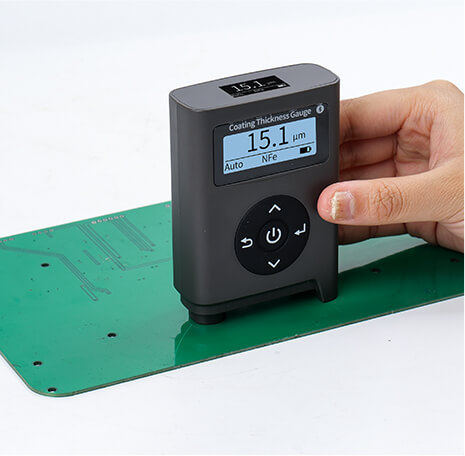

PCB board measurement

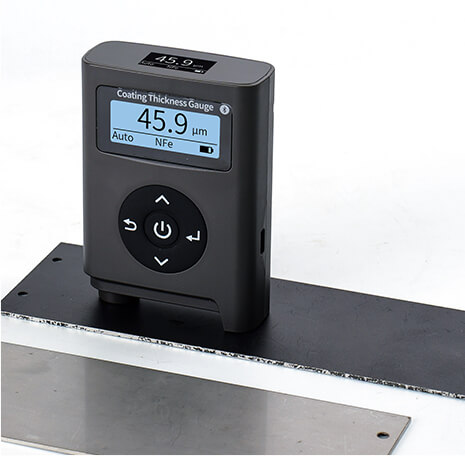

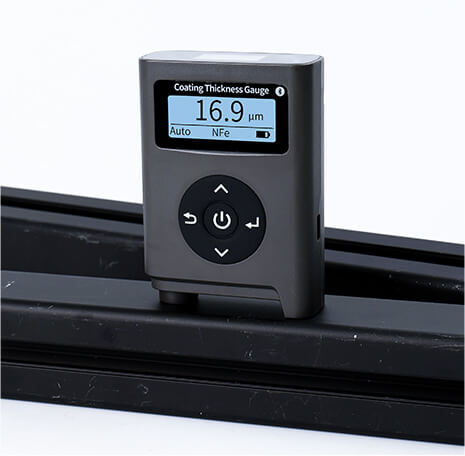

Aluminum profile measurement

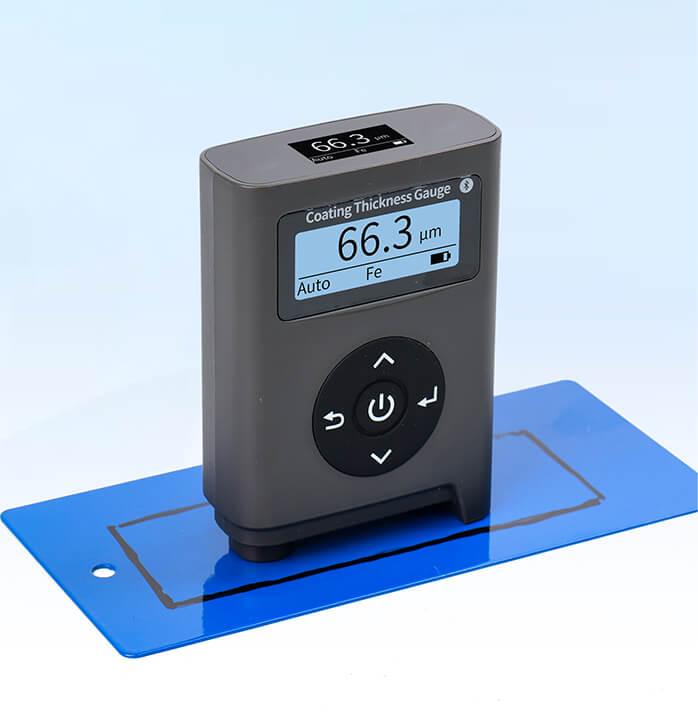

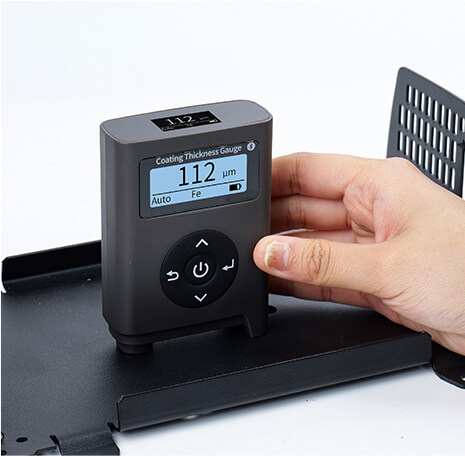

Paint coating measurement

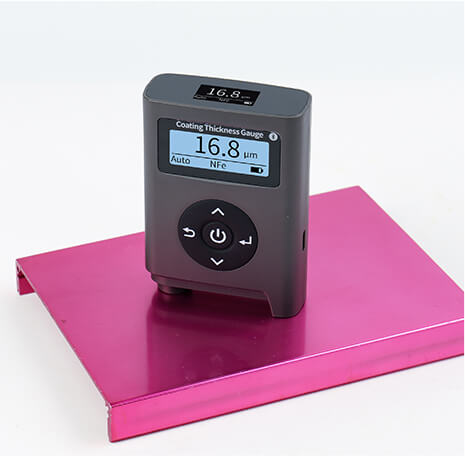

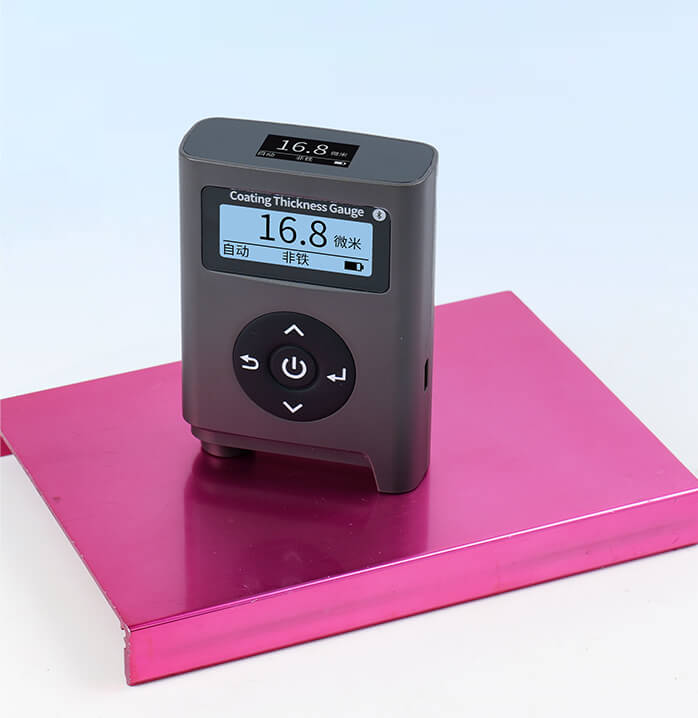

Anodized layer measurement

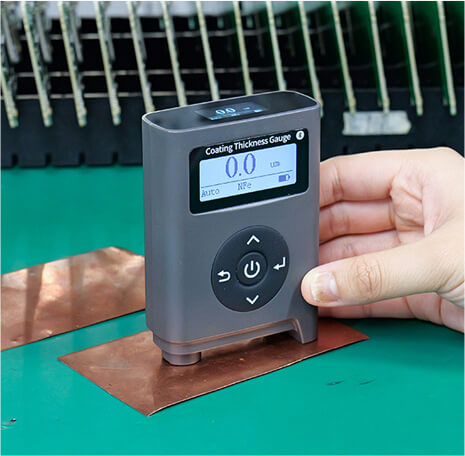

Copper foil measurement
Paint coating measurement
Parameters
| Parameter Name | Parameter Value |
|---|---|
| Probe tip | Cemented carbide |
| Measuring principle | Fe: Magnetic induction NFe: Eddy current |
| Probe type | Integrated probe |
| Measuring range | 0.0-2000μm |
| Resolution | 0.1μm:(0μm - 99.9μm) 1μm:(100μm - 2000μm) |
| Accuracy | 0-1000μm:≤±(2%H+1μm), H is the standard value 1000-2000μm:≤±3%H, H is the standard value |
| Unit | μm / mil |
| Measuring interval | 0.3s |
| Minimum measuring area | Ø = 15mm |
| Minimum substrate thickness | Fe:0.2mm NFe:0.05mm |
| Display | 128×48 dot matrix LCD |
| Power supply | 2pcs of 1.5V AA alkaline battery |
| Range of operation temperature | 0℃-50℃ |
| Storage temperature range | -20℃-60℃ |
| Host size | 90*65*28 mm |
| Weight(with battery) | 123g |
| Supply Voltage | DC3V |

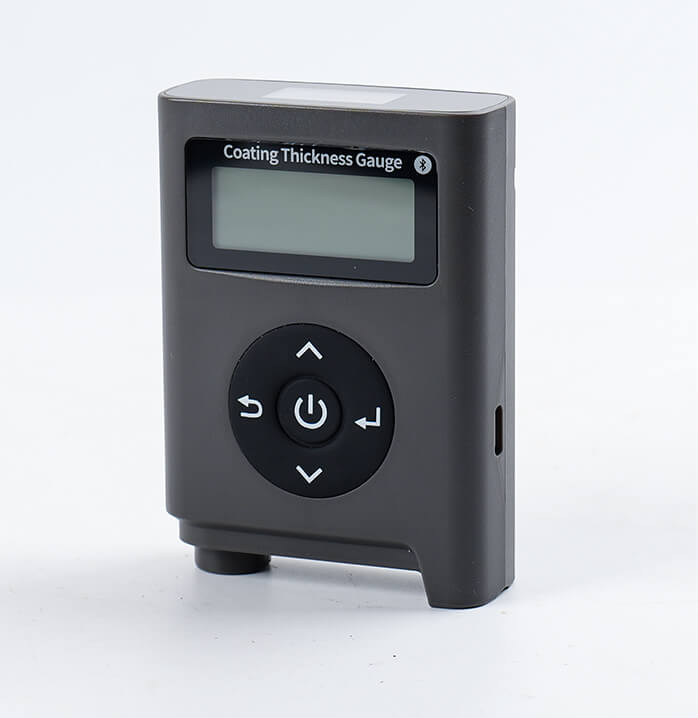

86226 front view

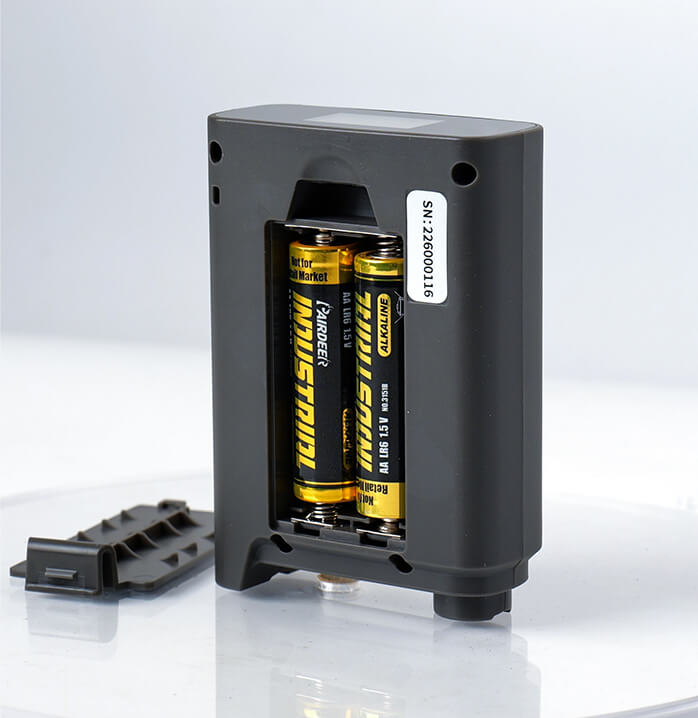

86226 back view
Features
Gravity-Based Measurement for Stable Readings
The device utilizes its own weight to maintain consistent pressure on the probe during measurement. This helps minimize human error and ensures reliable, repeatable results.

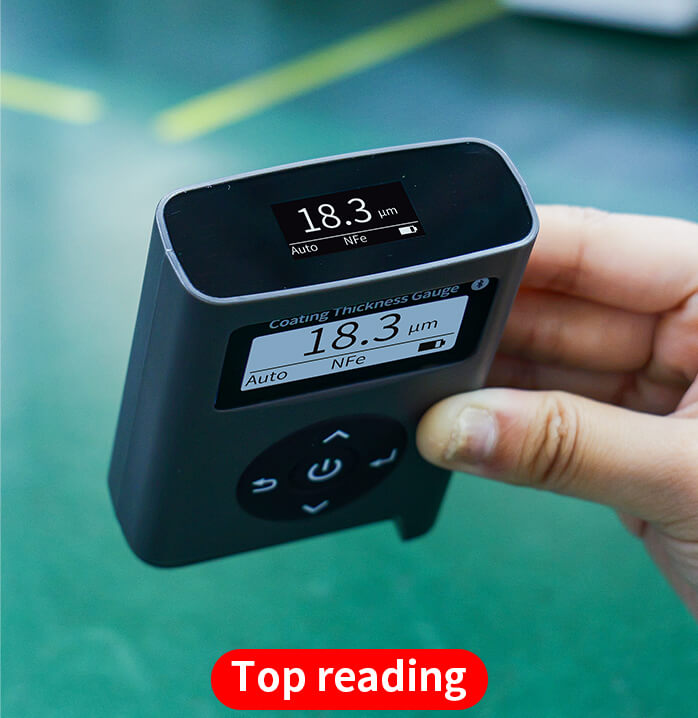

Dual-Screen Display for Enhanced Visibility
Equipped with both front and top display screens, the gauge allows users to view thickness readings from multiple angles, improving efficiency and ease of use.

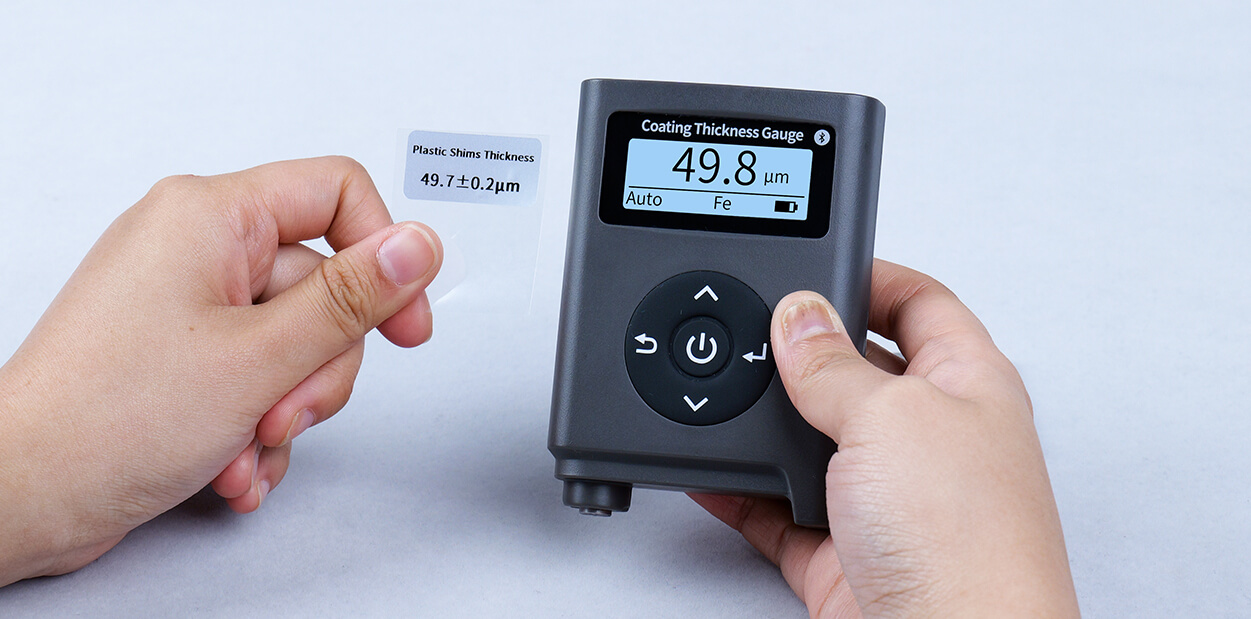

Multi-Point Calibration for Complex Scenarios
Supports zero calibration and 1–5 point calibration using dedicated zero plates and standard sheets. This ensures accurate readings, even in challenging testing environments.
Dual-Mode Probe for Ferrous and Non-Ferrous Metals
The smart probe automatically identifies whether the substrate is ferrous or non-ferrous, adjusting accordingly to provide precise coating thickness measurements across a variety of metals.
Automatic identification of iron substrate
Automatic identification of non-ferrous substrates
Certified High-Precision Measurement
With an accuracy of up to 2%H + 1μm, the device meets certification standards set by national metrology institutes.
Rapid, Continuous Measurement Over Large Areas
Designed for sliding across surfaces, it captures data in just 0.1 seconds and provides real-time max/min value displays—ideal for large-surface applications.
Built-In Data Storage
The internal memory can store up to 9 sets of test results, allowing users to review data anytime.

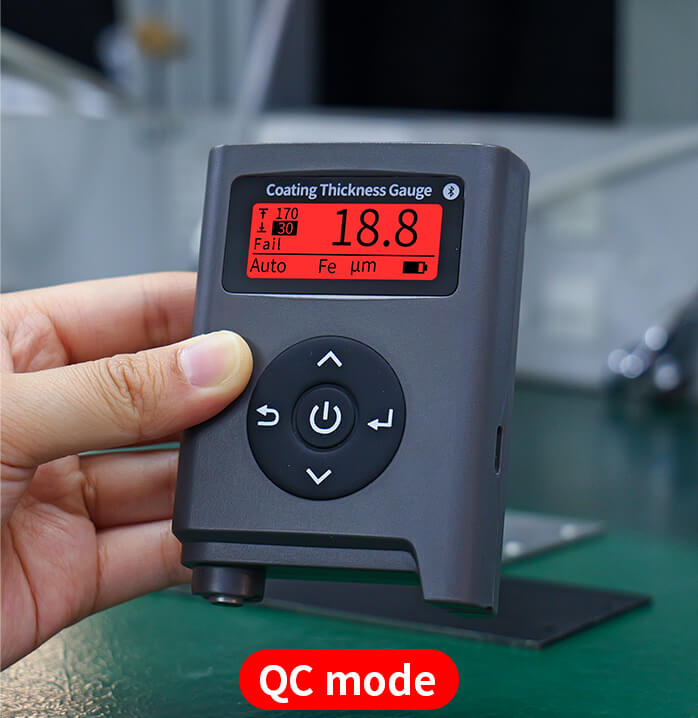

Switch Between Normal and QC Modes
Adapt the gauge to different scenarios by toggling between normal operation and QC (Quality Control) mode.
Measures Ultra-Thin Substrate Coatings
Capable of testing minimum substrate thicknesses of 0.2 mm for ferrous and 0.05 mm for non-ferrous materials—perfect for very thin plates.
Precision That Surpasses International Brands
Equipped with high-accuracy sensors and digital probe technology, the gauge delivers minimal errors and superior repeatability—outperforming many global competitors.

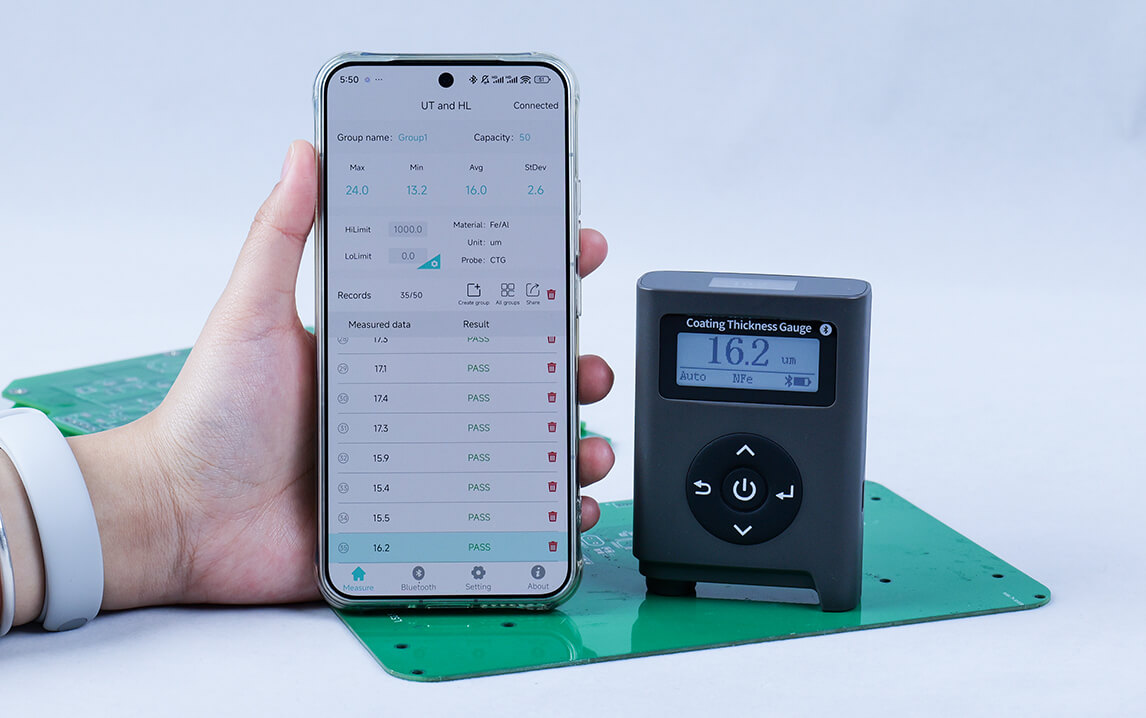

Bluetooth-Enabled App for Smart Data Management
Built-in Bluetooth allows seamless connection with a mobile app. Store, analyze, and share measurement reports effortlessly, enhancing data handling efficiency.
Durable, Wear-Resistant Carbide Probe
The robust cemented carbide probe resists wear even with frequent use or on rough surfaces, ensuring long-term precision.
Compact and Easy to Use
Lightweight and designed for one-handed operation, this portable tool delivers fast, non-destructive measurements across nearly all metal types.
Supports unit switching (μm/mil)
Delivers results in just 0.3 seconds
Negative display ensures precise zero calibration
Temperature compensation maintains data stability

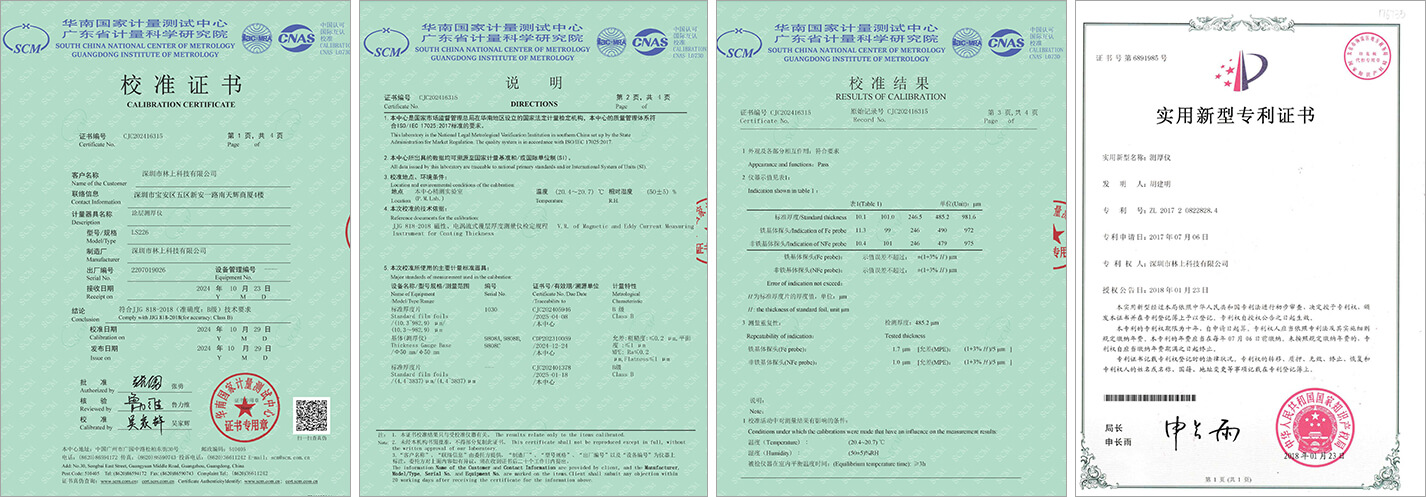

Qualifications and Standards
Standards for the product:
GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
Packaging
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | Coating Thickness Gauge | 1 | Set |
| 2 | Fe zero-adjustment plate | 1 | pcs |
| 3 | NFe zero-adjustment plate | 1 | pcs |
| 4 | Standard film | 5 | pcs |
| 5 | User manual | 1 | pcs |
Software Download
The 86226 coating thickness gauge is equipped with an APP that supports Android OS version 7.0 and higher. It can be installed through the following ways:
1) Scan the QR code on the instrument with your mobile browser, follow the instructions to download and install.
2) Click the link to install the APP.
3)Click the link https://www.lshtec.com/support/download/25740226 to download the APP.
